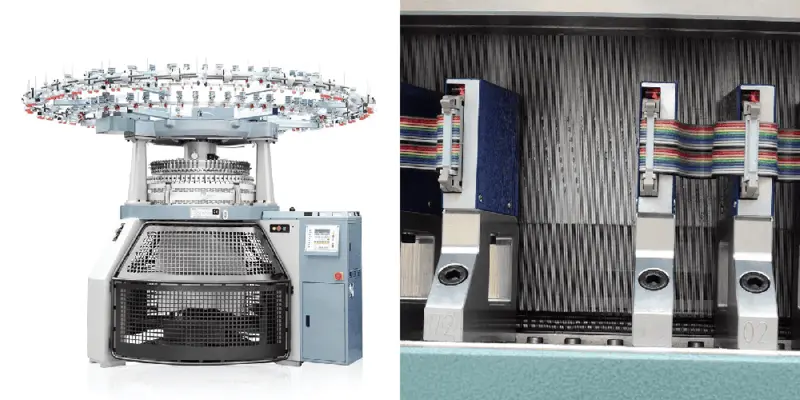

Guide to Changing Patterns on Double Jersey Computerized Jacquard Machines

In the world of textile manufacturing, double jersey computerized jacquard machines play a crucial role in creating intricate and high-quality fabric patterns. These advanced knitting machines allow for immense design flexibility, enabling manufacturers to bring complex patterns to life. However, successfully changing patterns on these machines requires a clear understanding of their functionality and careful preparation. This guide will walk you through the step-by-step process to ensure a smooth transition when updating designs on your double jersey computerized jacquard machine.

1. Familiarize Yourself with the Machine

Before attempting to change patterns, it is essential to gain a thorough understanding of the machine's operation. Study the manufacturer’s owner’s manual to comprehend all the features, functions, and specifications of your jacquard knitting machine. Familiarity with the controls, settings, and capabilities will help you avoid errors during the pattern change process and ensure efficient operation. Many manufacturers also offer online tutorials and customer support that can enhance your knowledge.

2. Design New Patterns

Once you have mastered the basics of the machine, it’s time to design the new patterns. Utilize computer-aided design (CAD) software to create or modify patterns to suit your specific needs. These tools provide a user-friendly interface to develop intricate designs, ensuring precision and compatibility. When designing, ensure the pattern file aligns with the format supported by your jacquard machine. Different models may have unique file type requirements, so double-check the specifications in the manual.

For inspiration, you can explore online libraries of existing patterns or collaborate with professional designers to create unique styles tailored to your brand’s requirements.

3. Load the Pattern File

After finalizing your pattern design, the next step is to transfer the file to the jacquard machine. Most modern machines support USB drives or SD card inputs for convenient file transfer. Insert your storage device into the appropriate port on the machine and follow the on-screen prompts to upload the pattern file. Ensure that the file is free from errors or corruption by performing a quick review before loading.

Pro Tip: Save a backup of your pattern files on your computer or cloud storage to prevent data loss.

4. Prepare the Circular Knitting Machine

Before activating the new pattern, make necessary adjustments to prepare the machine for optimal performance. This preparation step includes:

Adjusting fabric tension to accommodate the new design.

Selecting thread colors that match your pattern requirements.

Inspecting and positioning machine components, such as needles and feeders, to ensure they align with the pattern’s specifications.

Carefully follow the manufacturer’s guidelines during this setup phase. A well-prepared machine reduces the risk of errors and enhances the quality of the final product.

5. Select the New Pattern

Once the machine is prepared, navigate its control panel or menu system to access the pattern selection feature. Locate the newly uploaded pattern file and activate it as the primary design for production. Depending on the machine’s interface, this process may involve using physical buttons, a touchscreen display, or a combination of both.

Ensure that the selected pattern is correctly displayed on the preview screen (if available) before proceeding.

6. Conduct a Test Run

Testing is a critical step to validate the accuracy of the new pattern. Run a small sample fabric using the selected design to ensure that the pattern is implemented as intended. During the test run, carefully observe the output for:

Alignment issues.

Color inconsistencies.

Stitch errors or skipped sections.

If any issues arise, pause the process and make the necessary adjustments to the machine settings or the pattern file.

7. Begin Full-Scale Production

Once you are satisfied with the test run results, you can proceed with full-scale production. Load the required fabric onto the jacquard machine, ensuring it is properly aligned and secured. Start the machine and monitor its performance as it begins producing the new pattern. Consistent supervision during the initial production phase is recommended to identify and rectify potential problems early.

8. Maintenance and Troubleshooting

To maintain the machine’s longevity and ensure consistent performance, regular maintenance is essential. Follow these maintenance tips:

Clean Regularly

Remove lint, dust, and debris from the machine’s components to prevent clogging and wear.

Inspect for Damage

Check needles, feeders, and other critical parts for signs of wear or damage. Replace any faulty components promptly.

Lubricate Moving Parts

Apply the recommended lubricant to reduce friction and ensure smooth operation.

Update Software

If your machine has firmware updates, install them to enhance functionality and address known issues.

Additionally, familiarize yourself with common troubleshooting techniques to address potential challenges during pattern changes. For instance, if the machine displays an error code, consult the manual or contact customer support for guidance.

Conclusion

Changing patterns on double jersey computerized jacquard machines is a straightforward process when approached with preparation and precision. By understanding your machine, designing compatible patterns, and following a systematic process, you can seamlessly transition to new designs and produce high-quality fabrics that meet your specifications. Regular maintenance and testing will ensure long-term reliability and consistent output.

With these steps, you’re well-equipped to explore the creative possibilities of your jacquard knitting machine, offering unique and intricate patterns that set your products apart in the competitive textile industry.
